Auvidea - JNX42 Carrier board for NVIDIA Jetson Orin Nano, Orin NX or Xavier NX
Auvidea - JNX42 Carrier board for NVIDIA Jetson Orin Nano, Orin NX or Xavier NX

If you are a company within the EU other than Ireland, please provide your VAT number, preceded by your country code at check out and we will remove and re-fund the VAT element prior to shipping.

Also if you are a purchaser based in Norway, Switzerland or UK, we will re-fund the VAT element prior to shipping and will ship, delivery at place (DAP) and purchaser will be responsible for local taxes, duties and tariffs, if applicable.

  • 1x USB 3.0 type A with Xavier NX
  • 2x USB 2.0 type A
  • 1x micro USB for flashing
  • 1x USB 2.0 for the M.2 key B LTE slot
  • Designed and manufactured in Germany

For any volume quotes, please contact us on our details below:

T: +44 (0)118 981 6888
E: [email protected]
Our Price (ex VAT):219.00


Product Code: 70784-M2
Qty:

Description Features Technical information

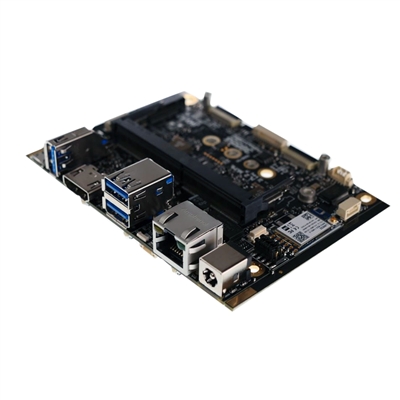

The JNX42 is a compact carrier board for the Jetson Orin Nano and Xavier NX. It is based on the JNX40 and has CAN and PCIe x1

It has also 2x CSI-2 with 4 lanes each

– 1x USB 3.0 type A with Xavier NX
– 2x USB 2.0 type A
– 1x micro USB for flashing
– 1x USB 2.0 for the M.2 key B LTE slot

If you use the compute Module NVIDIA Orin NX than you have 3x USB 3.0 type A.

A special feature is the PoE PD function. That means that the JNX42 can be powered by power over ethernet.
One of our new developments are the M.2 Key B LTE module JNX42 with two LTE SIM slots.

The base JNX42 supports only 12V. But the power module (38515) converts the input voltage of 12 to 48V to the output voltage of 12V.

Product Support

Auvidea's products are designed and manufactured in-house to achieve excellence: high reliability, wide temperature range, ruggedness, low failure rate, and cost efficiency. For support related questions, please contact Auvideo via their ticket system or visit the links below:


Product sheetProduct FAQTechnical manual3D Step filequick guide
